AFG-3051 Arbitrary Function Generators
Brief description

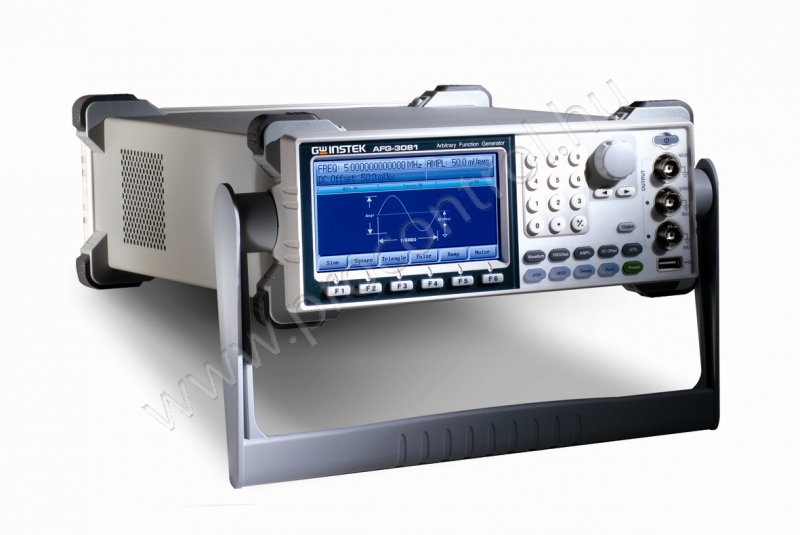

The AFG-3000 Series is arbitrary waveform generator designed for industrial, scientific research and educational applications. The series comes in bandwidths of 80MHz (AFG-3081) and 50MHz (AFG-3051) with built-in multiple standard waveforms to meet users' diversified needs.
Technical attributes:
|
Agency
|
Digitális
|
|
Frequency Range (Sine, Square)
|
50MHz
|
|
Frequency Resolution
|
1uHz
|
|
Frequency Stability
|
±1 ppm 0 to 50℃
±0.3 ppm 18 to 28℃
|
|
Aging
|
±1 ppm, per 1 év
|
|
Output Function
|
Szinusz, Négyszög, Emelkedő, Impulzus, Zaj, DC, Sin(x)/x, Exponenciálisan emelkedő, Exponenciálisan eső, Lejtő
|
|
Amplitude Range
|
10 mVpp től 10 Vpp( 50Ω-ba)
20 mVpp től 20 Vpp(nyitott áramkör)
|
|
Impedance
|
50Ω tipikus
|
|
Offset
|
±5 Vpk ac +dc ( 50Ω-ban)
±10Vpk ac +dc (Nyitott áramkörben
|
|
Display
|
4.3 incs TFT LCD
480 × 3 (RGB) × 272
|
|
Harmonic Distortion
|
–60 dBc DC～1 MHz, Ampl＜3 Vpp
–55 dBc DC～1 MHz, Ampl＞3 Vpp
–45 dBc 1MHz～5 MHz, Ampl＞3 Vpp
–30 dBc 5MHz～80 MHz, Ampl＞3 Vpp
|
|
Full Harmonic Distortion
|
< 0.2%+0.1mVrms
DC to 20 kHz
|
|
Growing/Regressive Time
|
<8 nS
|
|
Phasenoise
|
＜-65dBc typical 10MHz, 30 kHz band
＜-47dBc typical 80MHz, 30 kHz band
|
|
Overload
|
< 5%
|
|
Skew
|
1% periódusonként+1 ns
|
|
Task Circle Altering
|
20.0% to 80.0% ≦ 25 MHz
40.0% to 60.0% 25～50MHz
50.0%(Fix) 50～80MHz
|
Mentés
Technical Description
Wide frequency range from 1uHz to 80/50MHz
Supports many types of signal applications
High 200MSa/s sampling rate
16-bit Amplitude Resolution
Output from any section of 1M-point-long waveforms
4.3" high resolution LCD display
Four ways to generate arbitrary waveforms from Front Panel Operation, CSV file uploading, Direct Waveform Reconstruction (DWR), Arbitrary Waveform Editing PC Software
Impedance switch / on-screen help
USB, RS-232, GPIB interface support
|
