TIBBO EM1202-EV-RS Evaluation Board

Brief description

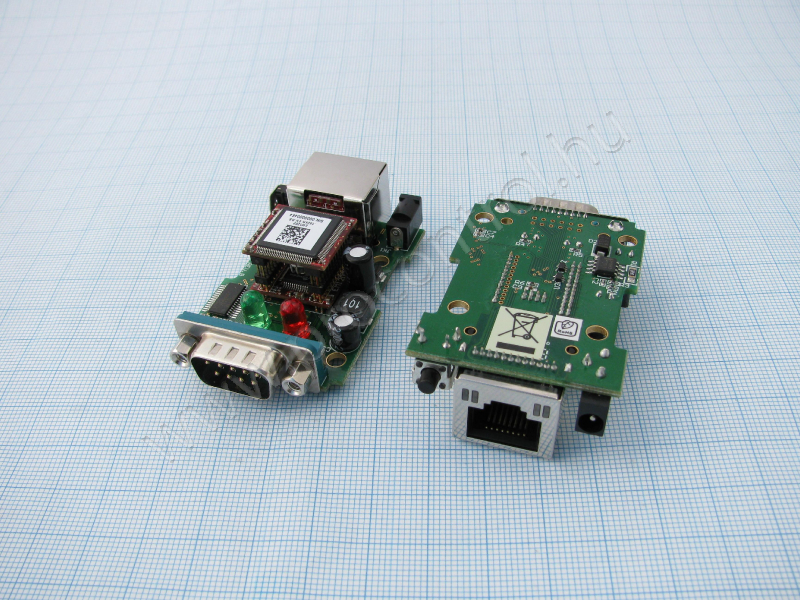

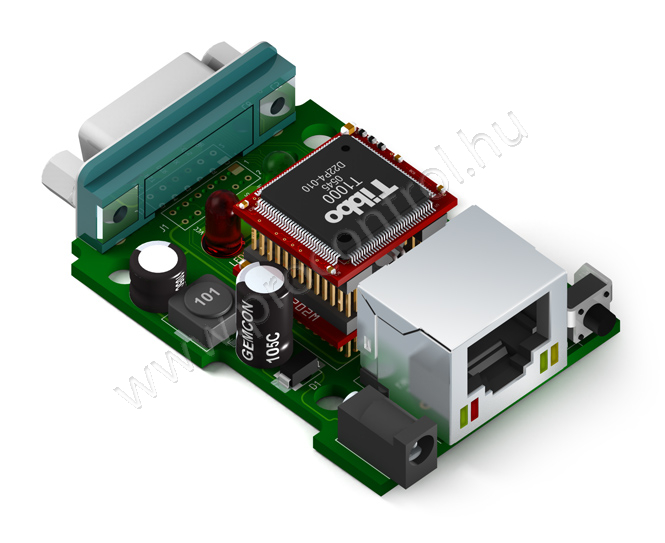

The EM1202-EV is a 100BaseT Ethernet to serial board based on the EM1202 Ethernet module. The board offers a convenient way to test the EM1202 and is also small enough to be used in production devices as a faster implementation alternative to modules.

Programmable in Tibbo BASIC, the EM1202-EV offers a low-cost, rapid development alternative to expensive and complex computing platforms, such as LINUX-based boards.

The EM1202-EV is supplied in three versions (-RS, -TM, -TS) that differ in the set of installed components- see bottom of page for details. The EM1202-EV can be used to create a standalone product or built right into your host device.

Properties

• Compact, PCB dimensions only 52.6x38mm.
• Two power options: onboard power regulator with 9-24VDC input range (-RS, -TM) or direct 3.3VDC input (-TS).
• One 100BaseT Ethernet port.
• Choice of RS232 (-RS) or TTL-level (-TM, -TS) serial port (TX, RX, RTS, CTS, DTR, DSR).
• Two status LEDs on top of the Board (-RS).
• Reliable reset with brown-out detection.
• Internal firmware is upgradeable through the serial port or network.

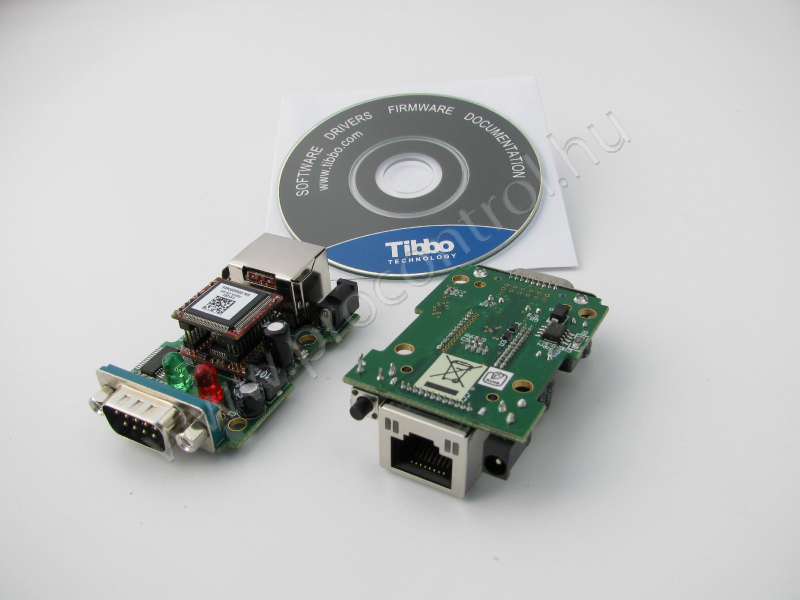

• EM1202-EV Starter Kit available.
• CE- and FCC-approved.
• BASIC Programmability
• Executes your application written in Tibbo BASIC.
• Absolute flexibility - think of the EM1202-EV as a miniature computing platform.
• Supplied with TIDE -- a comprehensive development environment featuring seamless cross-debugging.
• Integrated web server (HTTP) with dynamic content generation.
• Numerous high-level objects speed up and simplify coding. Available objects include:
• Sock- up to 16 simultaneous TCP or UDP connections;
• Ser- UART communications;
• Io- control serial port lines;
• Stor- read to and write from the EEPROM;
• Romfile- add static (ROM) data to your project;

Technical attributes:
